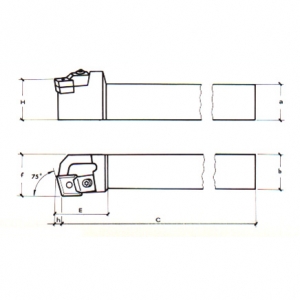

| Ref. | R/L | Placa | a = H | b | c | E | f | Placa Base | Pasador | Brida | Price/EUR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MCKNR 2020 K12 | R | CNMG1204 | 20 | 20 | 125 | 30 | 25 | CN-12 | PCE-12 | MBL-12 | Consultar precio |
| MCKNL 2020 K12 | L | CNMG1204 | 20 | 20 | 125 | 30 | 25 | CN-12 | PCE-12 | MBR-12 | Consultar precio |

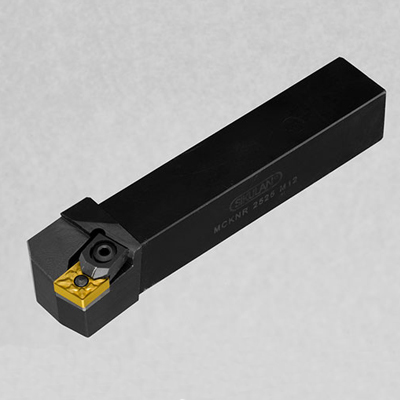

| MCKNR 2525 M12 | R | CNMG1204 | 25 | 25 | 150 | 30 | 32 | CN-12 | PCE-12 | MBL-12 | Consultar precio |
| MCKNL 2525 M12 | L | CNMG1204 | 25 | 25 | 150 | 30 | 32 | CN-12 | PCE-12 | MBR-12 | Consultar precio |
| MCKNR 3225 P12 | R | CNMG1204 | 32 | 25 | 170 | 30 | 32 | CN-12 | PCE-12 | MBL-12 | Consultar precio |
| MCKNL 3225 P12 | L | CNMG1204 | 32 | 25 | 170 | 30 | 32 | CN-12 | PCE-12 | MBR-12 | Consultar precio |
| Ref. | D | d | H | a | Z* | Placa Base | Tornillo Placa Base | Campo sin especificar | Placa |
|---|---|---|---|---|---|---|---|---|---|
| 45.SE15.080 | 80 | 27 | 50 | 9 | 5 | SE15 | TPB4 | 45M8 | SE..1504.. SE..1604.. |
| 45.SE15.100 | 100 | 32 | 50 | 9 | 6 | SE15 | TPB4 | 45M8 | SE..1504.. SE..1604.. |
| 45.SE15.125 | 125 | 40 | 63 | 9 | 7 | SE15 | TPB4 | 45M8 | SE..1504.. SE..1604.. |
| 45.SE15.160 | 160 | 40 | 63 | 9 | 7 | SE15 | TPB4 | 45M8 | SE..1504.. SE..1604.. |
| Ref. | D | d | H | a | Z* | Placa Base | Tornillo Placa Base | Campo sin especificar | Placa |
|---|---|---|---|---|---|---|---|---|---|
| 45.SE15.080 | 80 | 27 | 50 | 9 | 5 | SE15 | TPB4 | 45M8 | SE..1504.. SE..1604.. |
| 45.SE15.100 | 100 | 32 | 50 | 9 | 6 | SE15 | TPB4 | 45M8 | SE..1504.. SE..1604.. |
| 45.SE15.125 | 125 | 40 | 63 | 9 | 7 | SE15 | TPB4 | 45M8 | SE..1504.. SE..1604.. |
| 45.SE15.160 | 160 | 40 | 63 | 9 | 7 | SE15 | TPB4 | 45M8 | SE..1504.. SE..1604.. |
